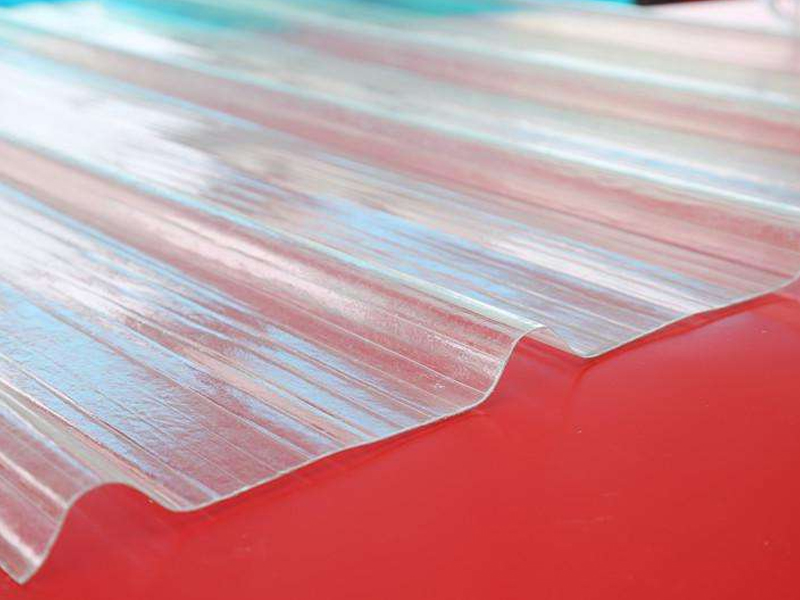

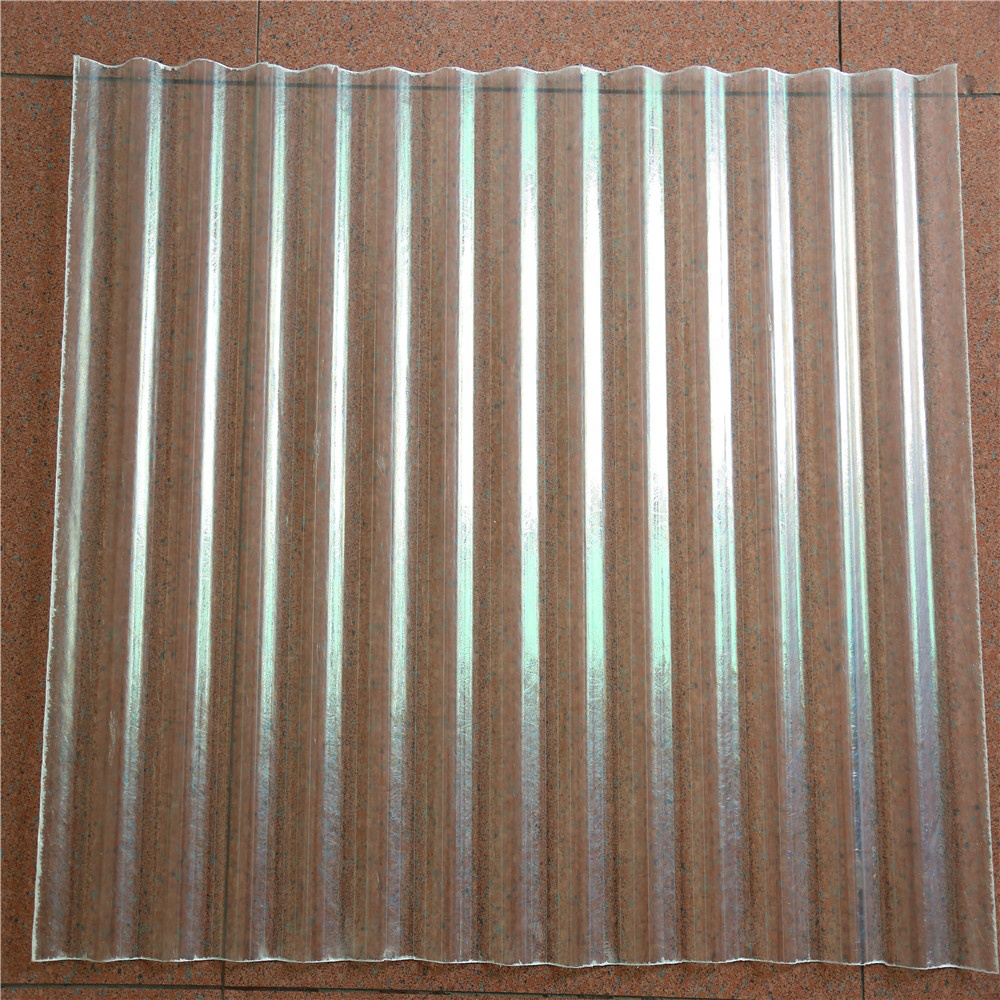

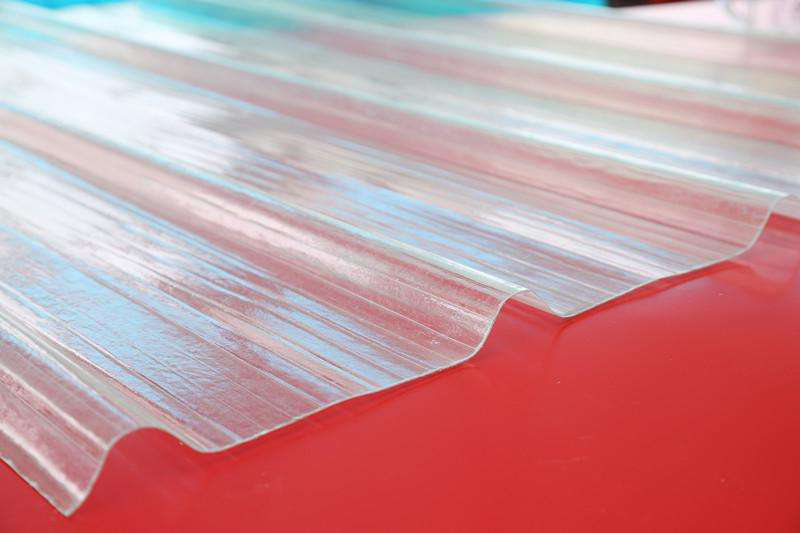

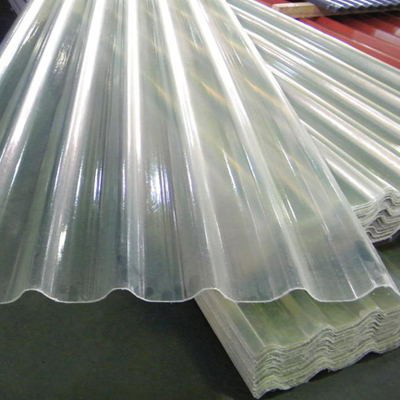

FRP Fiberglass or Glass reinforced polyester sheets flat (greenhouse fiberglass panels) are a wonderful composite material consisting of fiberglass reinforcement in a matrix of unsaturated polyester resin and outer protective coating with uv stabilized in built color of your choice having exceptional strength to weight ratio. Transparent Glass fiber reinforced polymer is generally known for its high strength and resistance to high temperatures, chemicals, bacteria or termite and excellent acoustic insulation.It is widely in all spheres of life – Aerospace, railways, chemical industry, marine industry, food industry, automobile industry, building and construction etc.
1. Higher Transmittance up to 90% and Soft Day Light
2. Durability:FRP Sheets have very long life, as they are tough and flexible
3. Light Weight&High Impact Strength: The relative density is between 1.5~2.0, only 1/4~1/5 of carbon steel, but the tensile strength is close to or even exceeds that of carbon steel.
4. Highly corrosion-Resistant: FRP panels are also suitable for use in
highly corrosive environments where exposure to chemicals or saltwater is a concern, are UV resistant to sun exposure and can be made with fire retardants when required.
5. Excellent Thermal Insulation: The thermal conductivity of FRP is 1.25~1.67kJ/(m·h·K) under room temperature, only 1/100~1/1000 of metal. Therefore, It is an ideal thermal protection and ablation resistant material under transient ultra-high temperature conditions.
6. Flexibility in Sizes and Thickness: FRP Sheets are custom made sheets and can be made in various sizes, thickness and designs.
7. Easy to Install, Maintain and Clean.
8. Customized Colour & Design: FRP Sheets can be made in any colour and in various designs.
Coverage Material | Coverage Material |
Resin Material | High Quality Polyester Resin |
Reinforced Glass Fiber | Taishan Fiberglass T984,content 28%-30% |
Light Transmittance | 90%(translucent) 79%(light blue) 65%(light white) |
Temperature Tolerance Limits | -60℃ to +120℃ |
Anti-ultraviolet Rate | More Than 99% |
Warranty | 10-15 years |
Shape | Flat/Trapezoid/Round wave |
Thickness:
| 0.6MM, 0.8MM, 1.0MM, 1.2MM, 1.5MM, 2MM, 2.5MM, 3MM
|
Length | Customized(according to container) |
Width | Less than 1500MM or 3200MM |

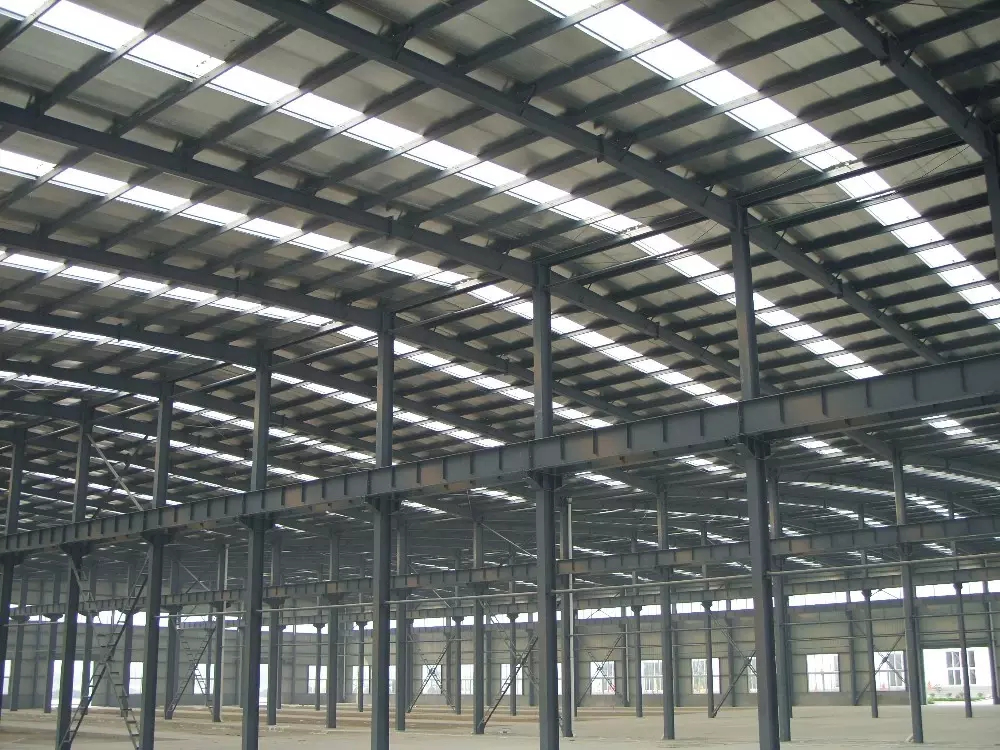

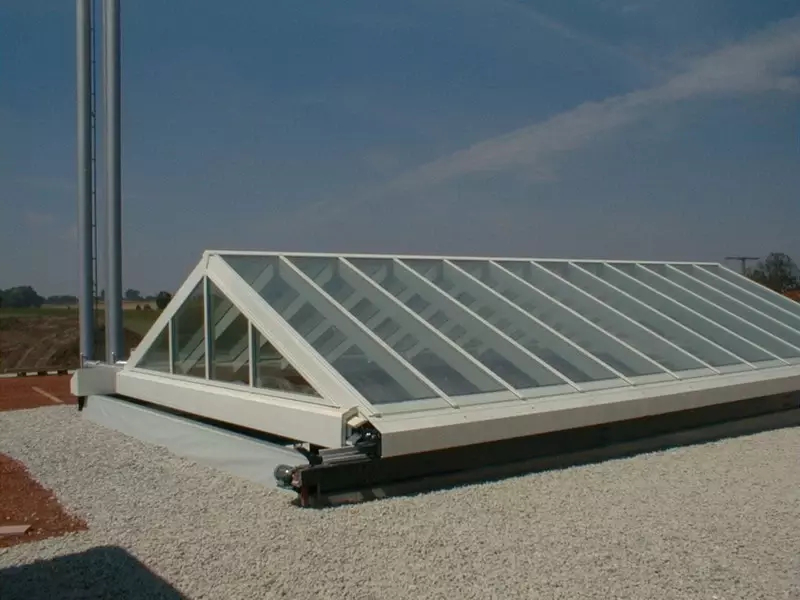

Application | Greenhouse,Roof of Factory,Farm,Wall Lighting,Station,Shed,and so on |
Fire proof rate | Class A / Class B / Class C according to ASTM84 |
Raw Material | Choose Quality Supplier, Test it before Entering the Warehouse |
Mould | Confirm the Size of Mould before production and Ensure the precision of the Design |
Experienced Workers | Every Part has different workers to operate |
Finished Product | Test it before Entering the Warehouse and UN-qualified Product not Sold |
Production Machines | Adjust the Temperature into the Appropriate Value and the Thickness and Speed |
