Sandwich Panel

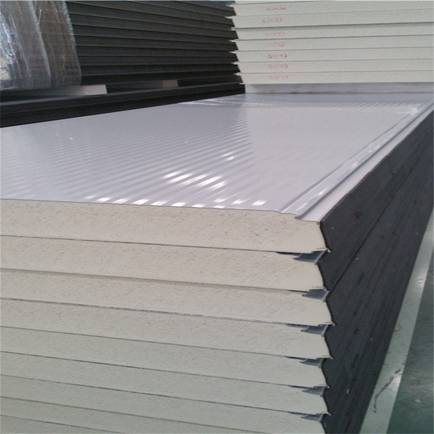

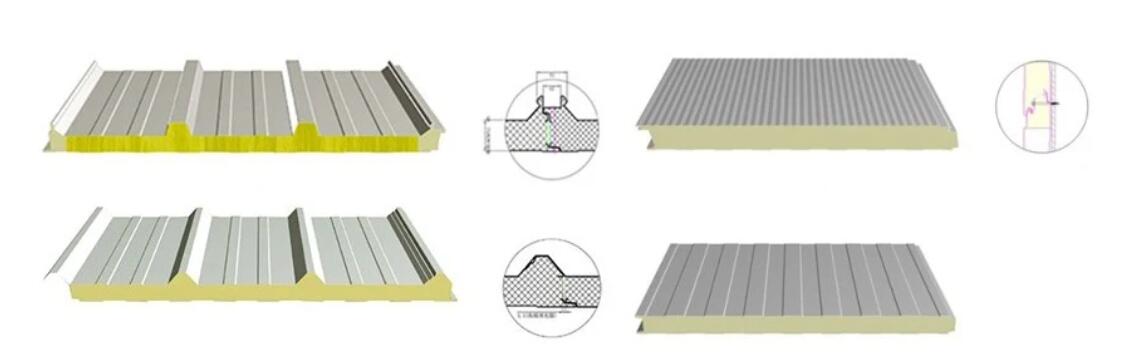

PU/PIR Sandwich Panel:
930/1000 Type | Application | |
Effective width (mm) | 930/1000 |
|
| 1200 (upper panel) | |
1070 (inside panel) | ||
Thickness of Plate (mm) | 0.4-0.8 | |
Thickness of Core Material (mm) | 40-150 | |
Core Material | PU | |
930/1000 Type | Application | |
Effective Width (mm) | 930/1000 |
|
Feeding Width (mm) | 1100 (upper panel) | |
1070 (inside panel) | ||
Thickness of Plate (mm) | 0.4-0.8 | |
Thickness of Core Material (mm) | 40-100 | |
Core Material | PU | |

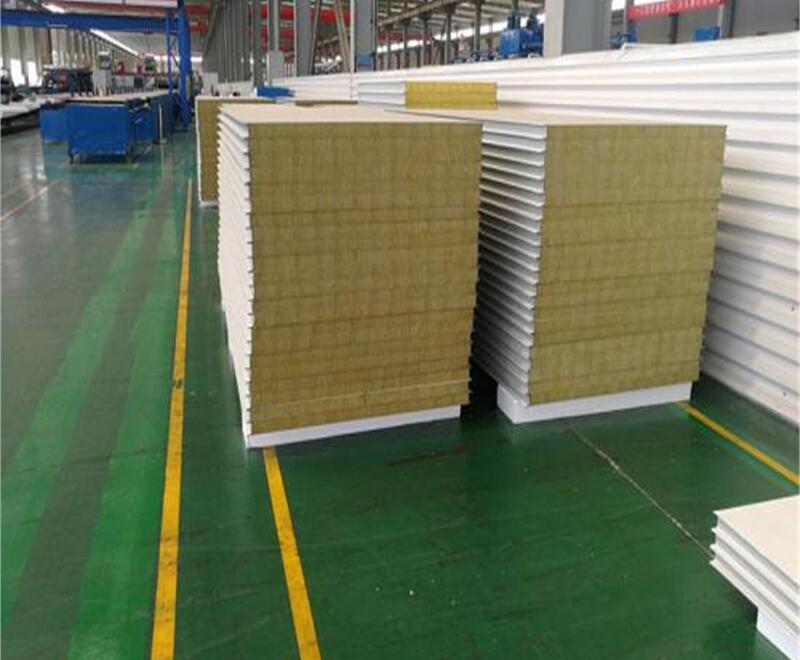

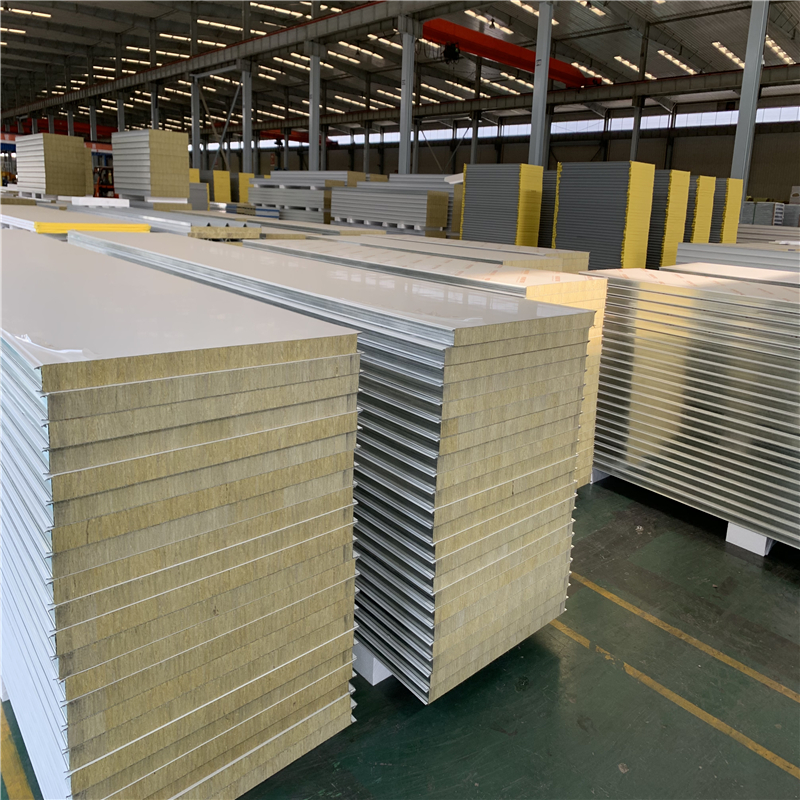

Rock Wool Sandwich Composite Panel:
The waterproof rate is not less than 98% and the panel surface is more stable.
It does not produce corrosive substances.
It has good performance of fire prevention.
Product Introduction:
The product uses high-quality water-proof rock wool as the core material. Through the super long precision double-track curing, the product is excellent in terms of fire prevention, thermal insulation, noise reduction and environmental protection.
Product Parameters:
Brand of steel plates | Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel. |
Painting of steel plates | PVDF, SMP, HDP, PE; The top painting should be above 25μm. |
Galvanized layer of steel plates | Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³. |
Thickness of steel plates | 0.14mm-0.6mm |
Thickness of core | 50mm/75mm/100mm/120mm/150mm |
Density of core | 90/100/120kg/m³ |
Effective width | 950/1150mm |
Panel Length | According to customers’ request |
Performances:
1. Fire Prevention: High-quality water-proof rock wool and class-A fire-proof performance.
2. Thermal Insulation: The low coefficient of heat conductivity and the excellent node design guarantee the sealing performance and the thermal insulation effect.
3. Sound Insulation: The sound absorption effect is good. The sound reduction factor is no less than 30dB.
It can effectively reduce the interference of outside noise.
4. Solid: The panel has high strength, unique double-support plug interface design and strong capacity in wind pressure resistance.
It has strong strength to resist pressure and bearing, which can used as exterior protected construction and load-carrying construction.
5. Beautiful Design: Bright in color and attractive in appearance, there is no need to make the outer ornament.
The panel adopts hidden-screw node design and has diversified panel effects.
6. Convenient Installation: Easy, flexible and fast. Compared with civil construction, it can cut down over 40% construction period.

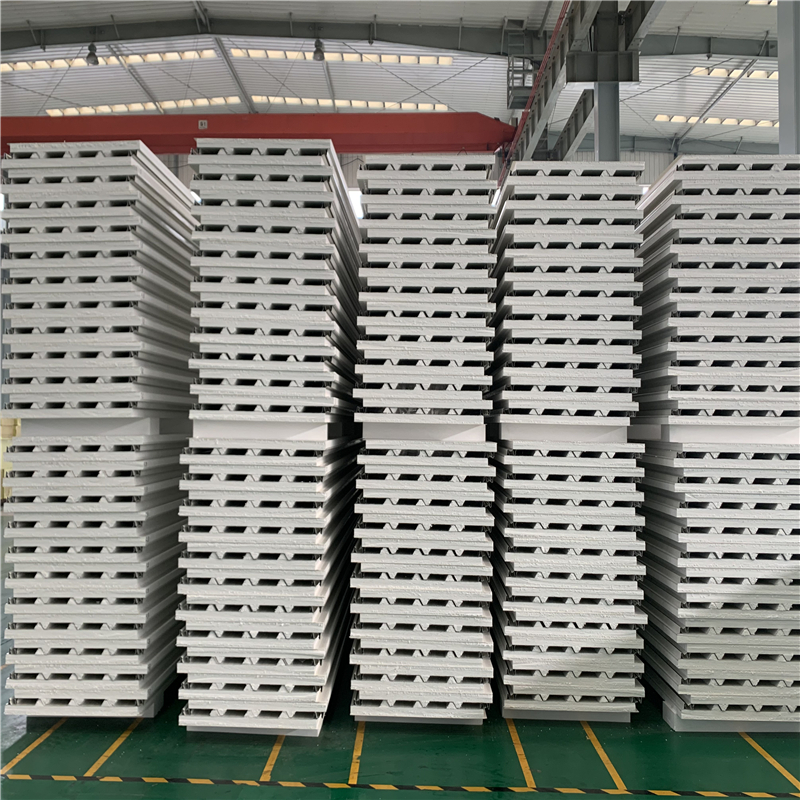

Glass Wool Sandwich Composite Panel:
The product uses high-quality glass wool as the core material. Through the super long precision double-track curing, the product is excellent in terms of fire prevention, thermal insulation, noise reduction and environmental protection.
Product Description:
Glass wool Specification | |
Material Category | Inorganic insulation material |
Combustion Performance | A |
Heat Conductivity Coefficient | 0.035～0.055 w/m·k |
Density | 15-70 kg/m3 |
Temperature Endurance | 550℃ |
Water Absorption | >200% |
Brand of steel plates: | Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel. |
Painting of steel plates: | PVDF, SMP, HDP, PE; The top painting should be above 25μm. |
Galvanized steel plates: | Exterior plate: 55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate: 55% Aluzinc above 70g/m³or Zinc coating above 100g/m³. |
Thickness of steel plates: | 0.4mm-0.8mm. |
Thickness ofcore: | 50/75/100/120/150mm |
Density of core: | 64 kg/m³ |
Effective width: | 950/980/1150mm |
Panel Length: | According to customers’ request |
Performances:
1. Thermal Insulation: The low coefficient of heat conductivity and the excellent node design guarantee the sealing performance and the thermal insulation effect.
2. Sound Insulation: The sound absorption effect is good. The sound reduction factor is no less than 30dB.
It can effectively reduce the interference of outside noise.
3. Solid: The panel has high strength, unique double-support plug interface design and strong capacity in wind pressure resistance. It has strong strength to resist pressure and bearing, which can used as exterior protected construction and load-carrying construction.
4. Beautiful Design: Bright in color and attractive in appearance, there is no need to make the outer ornament.
The panel adopts hidden-screw node design and has diversified panel effects.
5. Convenient Installation: Easy, flexible and fast. Compared with civil construction, it can cut down over 40% construction period.

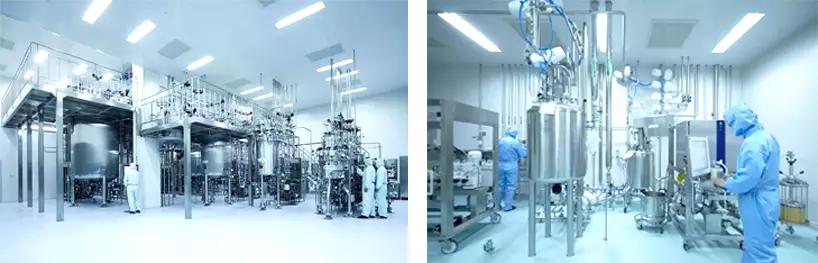

Clean Room Sandwich Panel:
Product Description:
Width | 950mm, 1150mm |
Wall Thickness | 50mm, 75mm, 100mm, 120mm, 150mm, 200mm |
Steel Thickness | 0.4-0.8mm |
Outer Plate Material | PPGI, Al-mg-Mn Alloy Steel, SS Steel, Ti-Zn Steel, 304/316 Stainless Steel, HPL, VCM, PVDF/ASA Film laminated Steel, Powder Coated Steel |
Coating | PE, SMP, HDP,PVDF |
Core Material | PU, Rock Wool, Magnesium Board, Paper Honey Comb, Aluminium Honey Comb, Plaster, EPS, etc. |
Frame Thickness | 0.6-0.8mm |
Application | Pharmaceutical Clean Room, Electronic Clean Room, Food Clean Room, etc. |
Performances:
1. High efficiency and energy conservation: the excellent thermal insulation performance reduces building energy consumption and reduces costs on air-conditioning equipment.
2. Beautiful facade: the hidden nail connection guarantees hidden screws and more beautiful building walls.
3. Solid and durable: high-strength panels and excellent mechanical properties of walls.
4. Patented design:the unique double-support plug interface design ensures that walls have stronger wind pressure-resistant capacity and are solider.
5. Multiple choices: multiple panel types.
Aluminum Honeycomb Panel:
1) Core material: EPS/Rock Wool/Glass Wool/PU/ Honeycomb
2) Thickness of core: 50-200mm
3) Thickness of steel sheet on the surface and bottom: 0.35-0.50mm
4) Different kinds of quality and colors customized
5) Sound Proof, Heat Insulation and Fire Proof
6) Be widely used in Prefab House, Warehouse, Multi-span Plant, Modular Villa,
Cold Storage and other Prefabricated Constructions
Standard Width | 980mm, 1180mm, 950mm, 1150mm |
Wallboard Weight | 10kg/m2 |
Core Materials | Honeycomb |
Thermal Insulation performance | 1.8kcal/m2/h/°C |
Sound Insulation Value | 20dB |
Fire Resistance Rating | B |

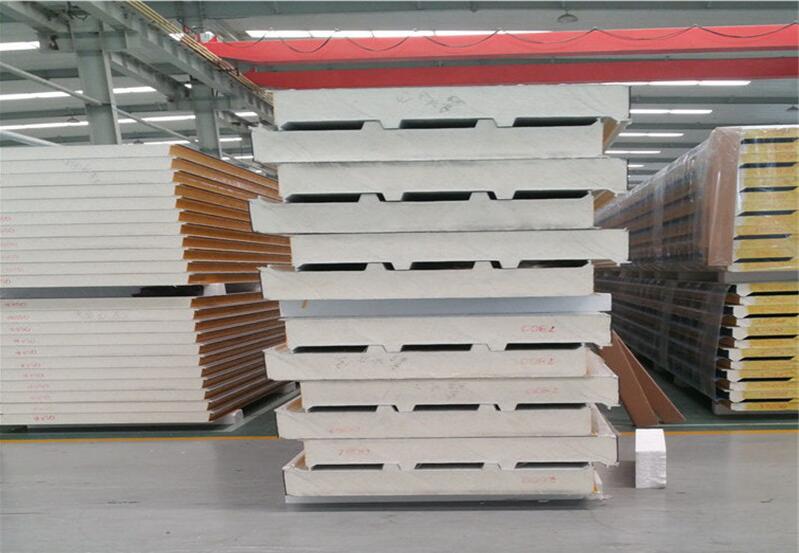

EPS Sandwich Panel
Product Data Sheet:
Product Name | Polystyrene EPS Sandwich Panel |
Panel Thickness | 50mm,75mm,100mm,150mm,200mm |
Effective Width | 950/980/1150mm/1200mm |
Length | Customized |
Steel Thickness | 0.4-0.7mm |
Steel Color | Customized, Any Ral Color |
Core | EPS (Polystyrene) |
Core density | 8-20kg/m3 |
Fireproof rating | B1/B2 |
Waterproof | Yes |
Use | Wall/Ceiling/Roof |
Application | Various Roofs and Walls referring to the Large Size Factory Buildings, Storages, Exhibition Halls, Gymnasiums, Purifying Factory, Combined House, Container House,Truck Box, Prefabricated Houses, Building Top Attachment, Indoor Partition, Automobile Painting Room, Refrigerator and other Projects, e. g. Interior Decoration of Civil Building for Medicine, Electronic, Foodstuff, Beverage, Vegetable Preservation and Large Refrigerator etc. |
Characteristics :
• Light, safe, decrease the load of the building.
• Easy to install, shorten the construction period.
• Protect environment, sandwich structure with antioxidant surfaces.
• High performance in heat insulating, can be served in both high and low temperature environment.
• Fireproof, meet the National standard, makes building safe.
• Soundproof, makes a quieter environment.
• Long service life up to 20 years, very low cost in wastage and maintenance.
• Elegant appearance.
• Improve air quality, Eco-friendly
